MIDMARK 625 Bariatric Wireless Barrier-Free Examination Chair - Heavy Duty Medical Exam Table for ADA Compliant Clinics & Hospitals
Free shipping on all orders over $50
7-15 days international
24 people viewing this product right now!
30-day free returns
Secure checkout
21871116
Description
The MIDMARK 625 BARRIER is a medical device that is designed to provide a physical barrier between the patient and the healthcare provider during certain medical procedures. It is commonly used in settings such as dental offices, hospitals, and clinics where there is a risk of cross-contamination between patients and healthcare providers.
- Midmark 625 with wireless controls.
- Bariatric table
- Refurbished 6 months warranty
Specifications:
PATIENT WEIGHT CAPACITY
650 lb (295 kg)
HEIGHT
Uncompressed: 15.5" Low/37" High (39 cm/94 cm)
Compressed: 14.6" Low (36 cm)
PREMIUM UPHOLSTERY DIMENSIONS (top)
28" W x 60" L (71 cm x 52 cm)
LENGTH WITH FOOTREST EXTENDED
76" (193 cm)
PELVIC TILT
5 1/5°
HEATED DRAWER
24.6 W
HEATED DRAWER TEMPERATURE
92°F to 112°F at 115 VAC input voltage, 70°F ambient
PAPER ROLL HOLDER
Holds 24" x 3.56" dia. paper roll (61 cm x 9 cm)

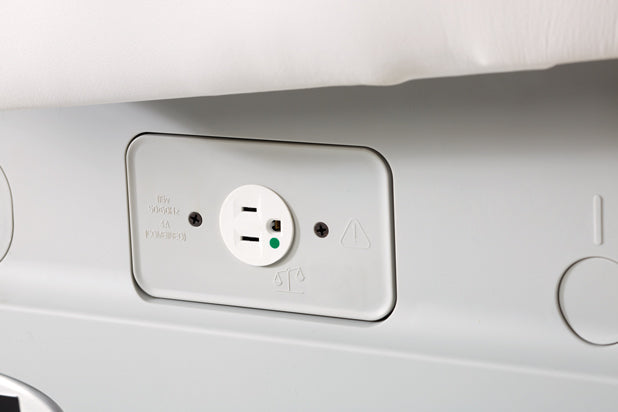

ELECTRICAL RECEPTACLE
Electrical Draw: 4 A
Hospital-grade, electrical receptacles on left and right sides
TABLE WEIGHT
435 lb (197 kg)
SHIPPING WEIGHT
485 lb (220 kg)
ELECTRICAL RATINGS
115 VAC, 50/60 Hz, 12 A
OPTIONS
Heated Upholstery Temperatures: Low 95°F/High 102°F
Wide Premium Top: 32" W x 60" L (97 cm x 152 cm)
REFURBISHED 6 Month Warranty
Model | 625 -004 |
| Serial Number | All |
| 625 Table -004 Specifications | |
|---|---|
Patient Weight (maximum): | 650 lbs (295 kg) |
Intended Weight: | Between 30 and 650 pounds (13.6/295kg) |
| Shipping Options and Weights: | |
Table with Upholstery | 475 lbs (216 kg ) |
| Table with Packaging and Skid, no Upholstery | 502 lbs (228 kg) |
Upholstery with Packaging, shipped separately | 45 lbs (20 kg) |
Power Cord Length: | 8 ft. (244 cm) |
Electrical Requirements: | Refer to: |
Foot / Hand Control Voltage: | 14 VAC, SELV (Safety Extra Low Voltage) |
Simplex Receptacles (maximum load): | 115 VAC, 5A, 50/60 Hz |
| Fuses: | |
| IEC inlet fuses (2) | 6.3A, 250V, Type-T, 5 x 20 mm |
| F1 and F2, on the main PC board | 10A, 250V, Type-T, 5 x 20 mm |
| F3, on the main PC board | 160mA, 250V, Type-T, 5 x 20 mm |
| F4, on the main PC board | 6.3A, 250V, Type-T, 5 x 20 mm |
| Models with drawer heaters - Distribution board fuses (2) | 800mA, 250V, Type-T, 5 x 20mm |
Duty Cycles: | |
| Motor Run Time: | Intermittent Operation , 30 seconds ON / 5 minutes OFF |
| Receptacles and Drawer Heater: | Continuous Operation |
Classifications: | Class 1, Type B Applied Part |
Protection against ingress of fluids: | IPXO Foot Control only: IPX1 |
